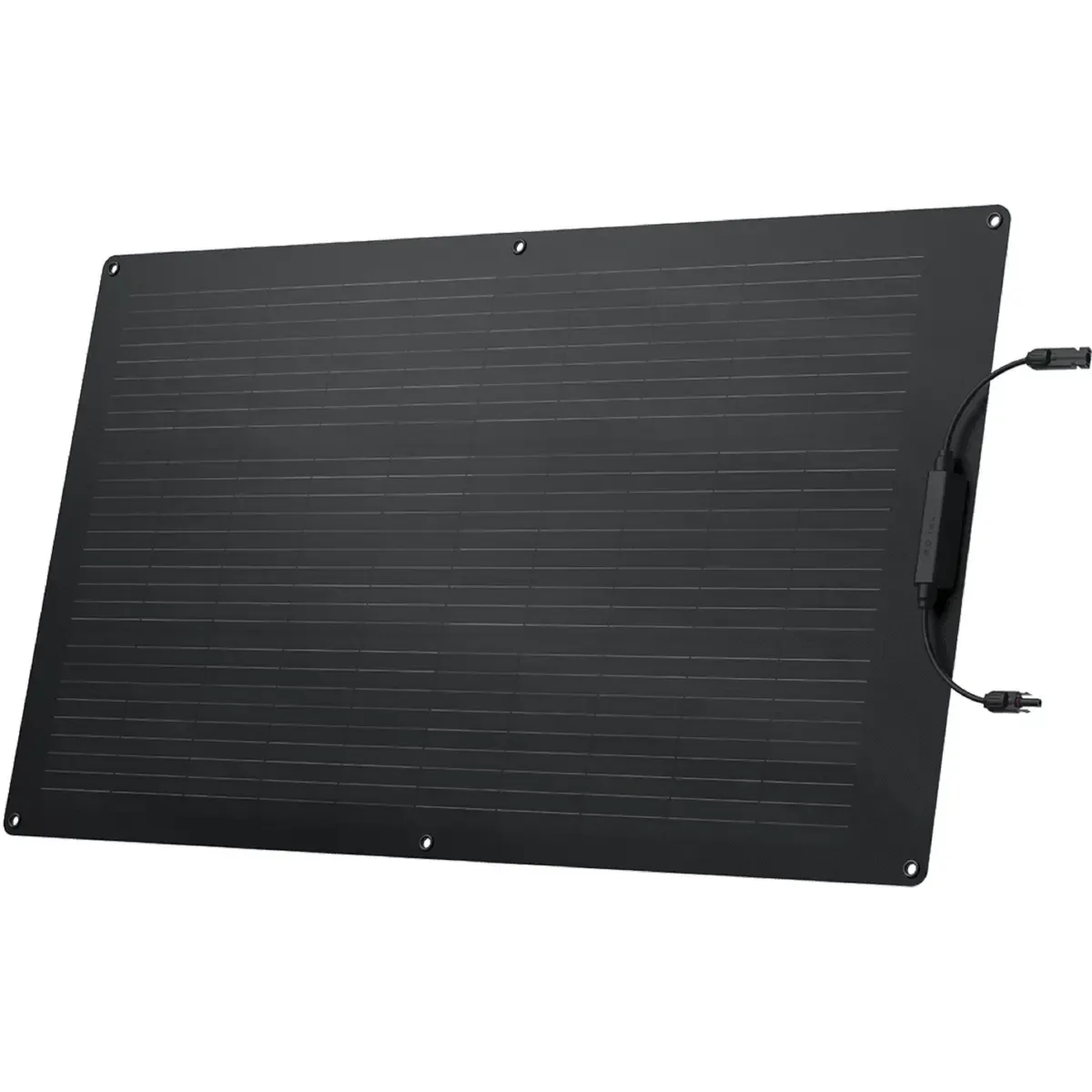

100W Solar Panel (Flexible)

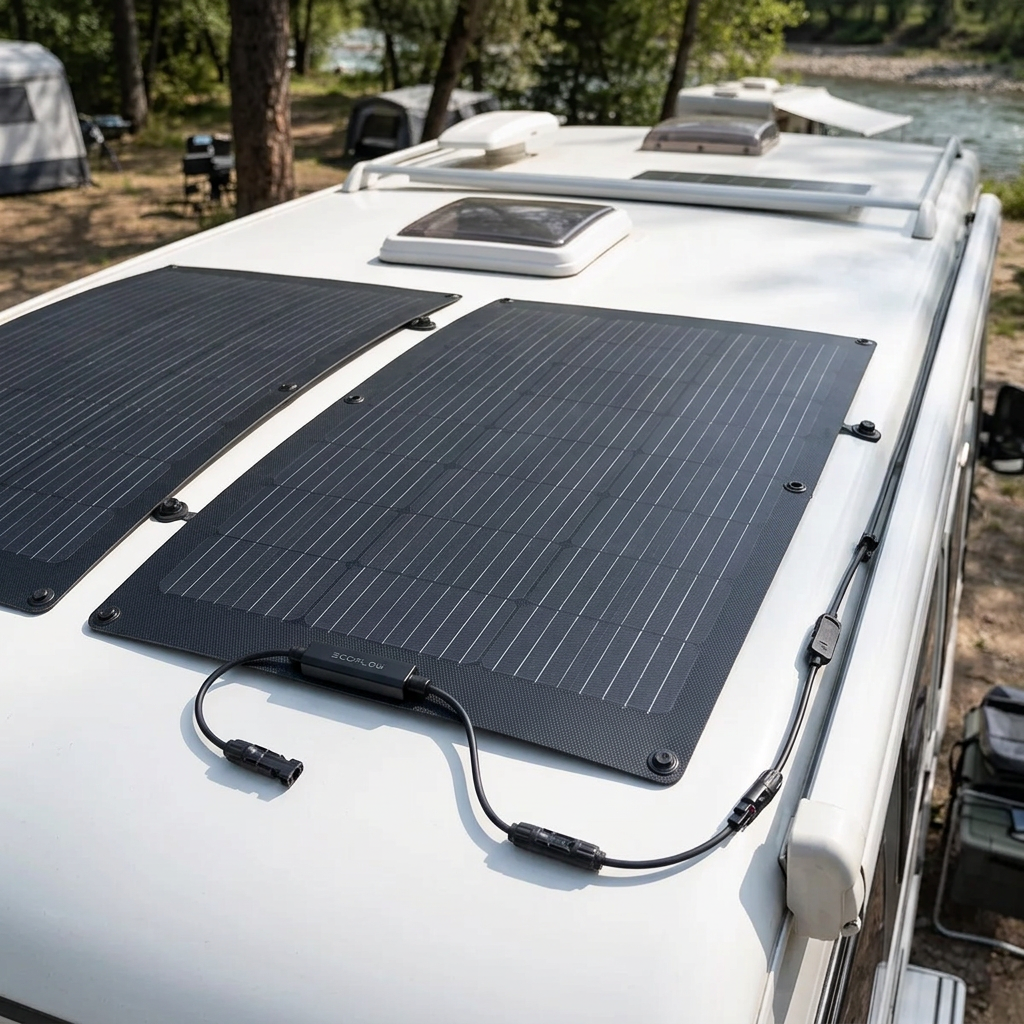

Flexible 100 W solar panel for installations where a rigid panel does not sit properly. It bends up to 258° and mounts on the roofs of motorhomes, campervans and boats. At 2.3 kg and 25 mm thick, it powers EcoFlow power stations and other solar systems with an MC4 connection.

Why this product

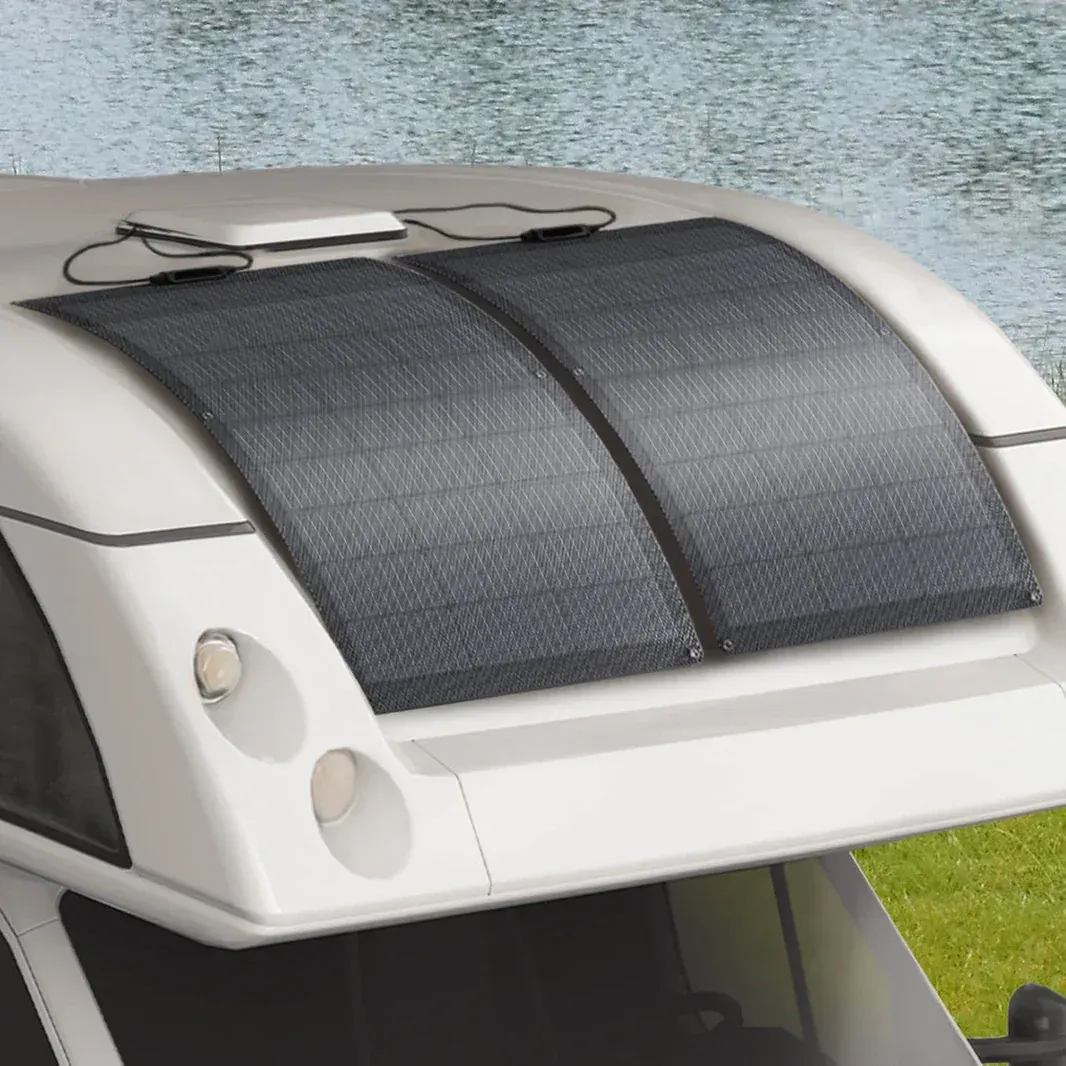

• Flexibility up to 258° — follows curved and uneven surfaces.
• Monocrystalline cells — conversion efficiency of up to 23%.
• 2.3 kg and 25 mm thick — keeps the load on the roof low.
• Bypass diodes — keep output going when part of the panel falls into shade.
• ETFE coating and IP68 rating — resists water and dust outdoors.
• Mounts with eyelets or adhesive — adapts to the surface available.

Specifications

• Rated power: 100 W (±5 W)
• Cell type: monocrystalline silicon
• Conversion efficiency: up to 23%
• Open-circuit voltage (Voc): 20.3 V
• Short-circuit current (Isc): 6.3 A
• Maximum power voltage (Vmp): 17.1 V
• Maximum power current (Imp): 5.9 A
• Maximum system voltage: 600 VDC
• Maximum fuse rating: 15 A
• Flexibility: up to 258°
• Connector: MC4
• Dimensions: 1055 × 612 × 25 mm
• Weight: 2.3 kg
• Protection rating: IP68, ETFE coating

What's in the box

• 100 W flexible solar panel with MC4 connector

Compatibility

Connects to EcoFlow power stations and to other solar systems with an MC4 input. Suited to the curved surfaces of motorhomes, campervans, boats and roofs.
