DazeBox Home

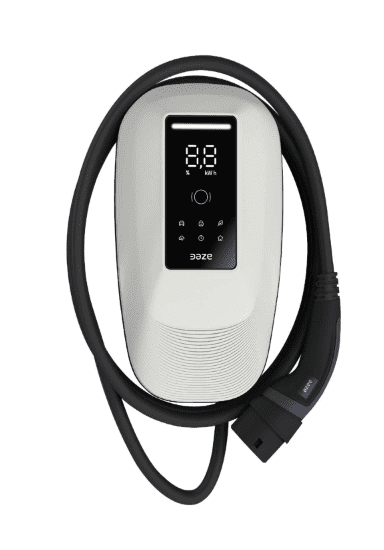

The DazeBox Home T is a domestic wallbox rated IP55, which you can install indoors or outdoors. Installation takes two stages: the supply line, then the unit itself. You set the power and the functions on the DIP switches on the board, and follow sessions in the Daze app.

Why this wallbox

• Solar Boost — charge with the surplus from your solar panels instead of drawing everything from the grid
• Dynamic power management — adapts charging to the energy available on the installation
• DIP switch setup — set charging power, Solar Boost and dynamic management directly on the board
• Indoors or outdoors — rated IP55 / IK08
• Four ways to connect — Wi-Fi, Bluetooth, Ethernet and RFID identification
• Control from the Daze app — adjust settings and watch charging status

Specifications

• Maximum power: 32 A / 22 kW or 32 A / 7.4 kW, depending on version
• Maximum current: 32 A
• Phase: single-phase or three-phase, depending on version
• Supply voltage: 220 V to 400 V, 50-60 Hz
• Residual current detection: DC 6 mA
• Connector: Type 2
• Connectivity: Wi-Fi, Bluetooth, Ethernet and RFID
• Protection: IP55 / IK08
• Dimensions: 360 × 200 × 105 mm
• Weight: 5.5 kg with cable; 3 kg on the socket version

Compatibility

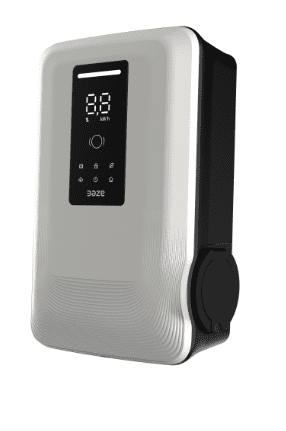

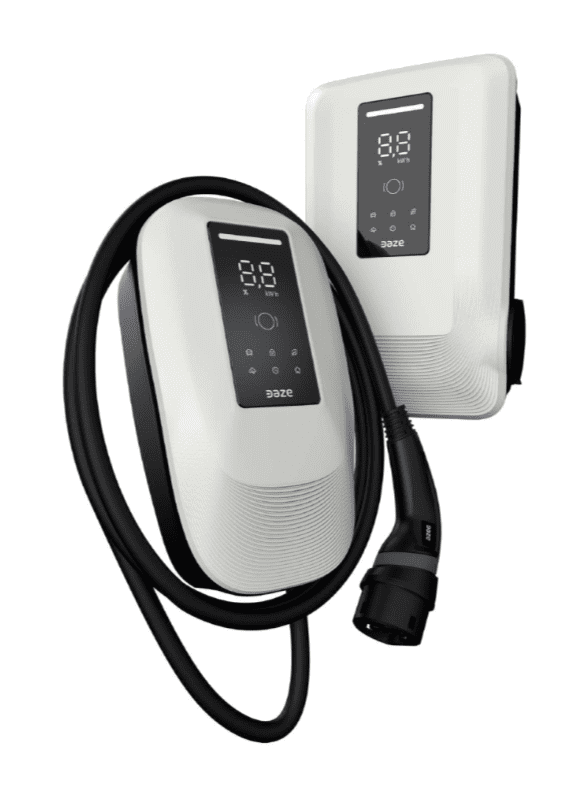

Charges electric vehicles with a Type 2 connector. On the socket version you use your own Type 2 cable; on the tethered versions you choose 5 m or 7 m. Solar Boost assumes a photovoltaic installation on site.
