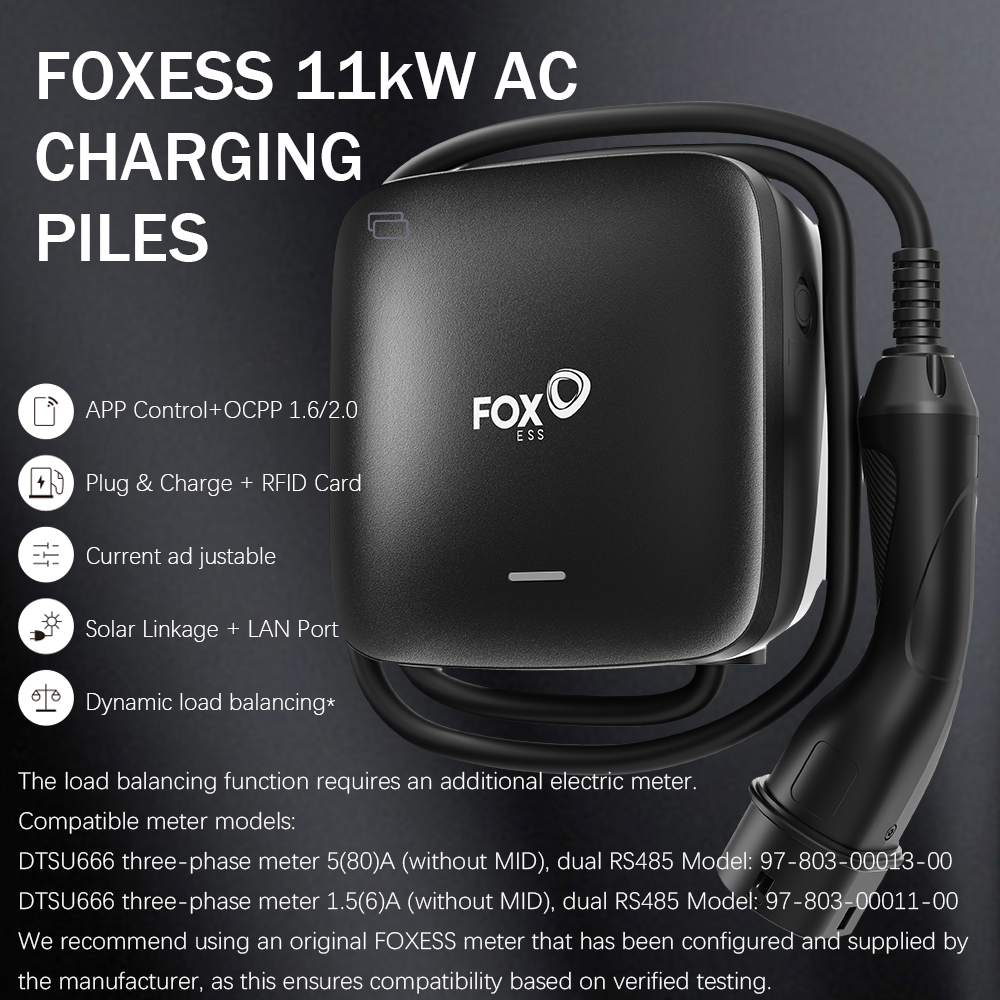

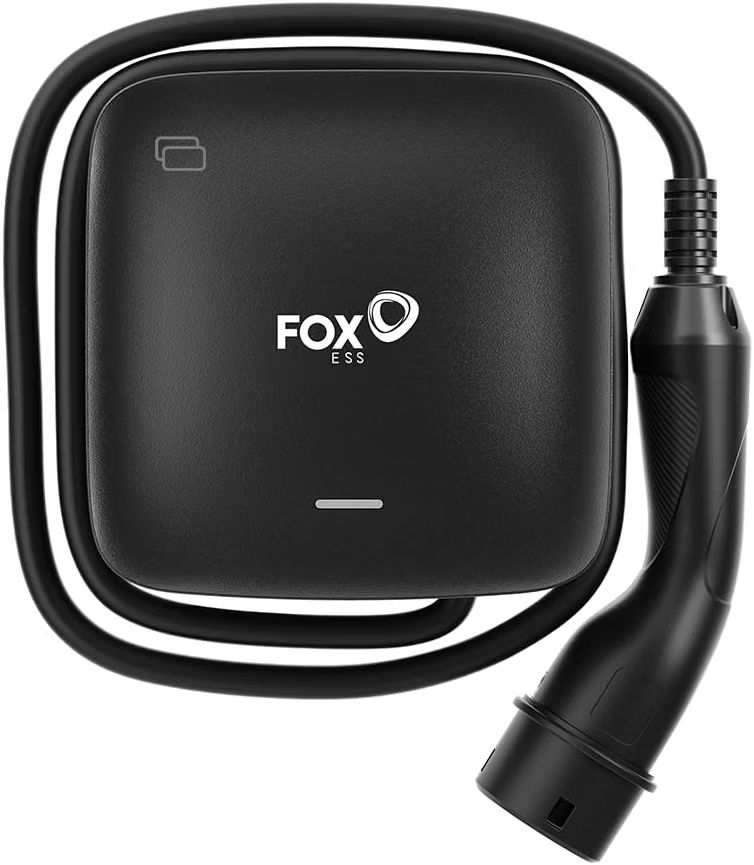

FoxESS Lmax Series Type 2 Wallbox 11 kW, App/WiFi/Bluetooth/OCPP

The FoxESS Lmax Series is a Type 2 wallbox rated at 11 kW three-phase for charging electric and plug-in hybrid vehicles at home or at work. You control charging from the app, over Wi-Fi, Bluetooth or a network cable, and you can connect it to management platforms over OCPP. With IP55 and IK08, it can be installed outdoors.

Why this product

• You charge faster — 11 kW three-phase at 400 V and 16 A, against the 3.7 kW typical of a domestic socket.
• You control it from the app — start and stop charging, track consumption and manage sessions remotely, over Wi-Fi, Bluetooth or LAN.
• It connects to management platforms — OCPP communication lets you integrate the wallbox into access-management and billing systems, useful for businesses and shared buildings.
• Only cardholders charge — RFID cards included for authentication at the wallbox itself.
• It will not trip your board — dynamic load management adjusts power and prevents overloading the installation.
• It uses your solar — ready for integration with photovoltaic systems.
• Full electrical protection — overvoltage, overcurrent, short circuit, residual current and overheating, with built-in Type A residual current detection and DC 6 mA.
• It lives outdoors — IP55 and IK08, operating from -25 °C to +50 °C.

Specifications

• Maximum power: 11 kW (16 A)
• Supply: 400 V / 16 A, three-phase
• Connector: Type 2 (IEC 62196)
• Connectivity: app, Wi-Fi, Bluetooth, LAN and OCPP
• Residual current detection: Type A, with DC 6 mA
• Protection: IP55 and IK08
• Operating temperature: -25 °C to +50 °C
• Dimensions: 197 × 196 × 105 mm
• Weight: 4.4 kg
• Standards: CE, TUV, EN and IEC 61851

What is in the box

• FoxESS Lmax Series 11 kW wallbox
• RFID cards

Compatibility

It charges electric and plug-in hybrid vehicles with a Type 2 connector (IEC 62196). It needs a three-phase 400 V supply with 16 A and installation by a qualified electrician; it can be mounted on a wall or on a pedestal. To confirm whether the unit ships with a cable or a socket, check the manual and the datasheet available on this page.
