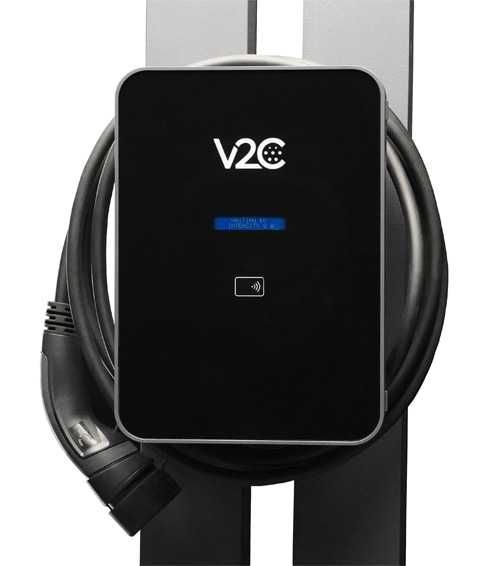

Wallbox V2C Trydan Pro – 7.4 kW / 22 kW – Full Connectivity

The V2C Trydan Pro is a wallbox for home or work that comes with the dynamic power manager and the current clamp already included. It reads the installation's consumption in real time and adjusts charging power on its own, so the breaker does not trip when other appliances are running. You choose 7.4 kW or 22 kW, with a Type 2 socket or a tethered 5 m or 10 m cable.

Why this wallbox

• Dynamic power manager and current clamp included — they measure consumption in real time and adjust charging power to what the installation has spare.
• Solar surplus charging — it connects over Wi-Fi to several solar inverters and to Shelly devices, and uses photovoltaic surplus instead of exporting it to the grid.
• SIM card included, 3 years of communications at no cost — alongside Wi-Fi, Bluetooth, Ethernet and 4G.
• V2C Cloud app — you manage and monitor sessions remotely, and the unit updates itself over the air.
• Built-in RFID — for managing users and access to the charger.
• IP54 / IK10 — with AC 30 mA / DC 6 mA residual current detection.

Specifications

• Maximum power: 32 A / 22 kW or 32 A / 7.4 kW, depending on the version
• Phase: single-phase or three-phase, depending on the version
• Supply voltage: 220 V or 400 V 50/60 Hz, depending on the version
• Connector: Type 2 socket or tethered 5 m or 10 m cable
• Connectivity: Wi-Fi, Bluetooth, 4G, Ethernet
• Protection rating: IP54 / IK10
• Residual current detection: AC 30 mA / DC 6 mA
• Weight: 7 kg
• Dimensions: 240 × 153 × 334 mm
• Access control: built-in RFID
• Updates: OTA, over the air

Compatibility

The Type 2 connector works with every electric vehicle that has a Type 2 port. The 22 kW versions need a three-phase 400 V supply; the 7.4 kW versions run single-phase at 220 V. Mobi.E certified versions are available for connection to the public network.
