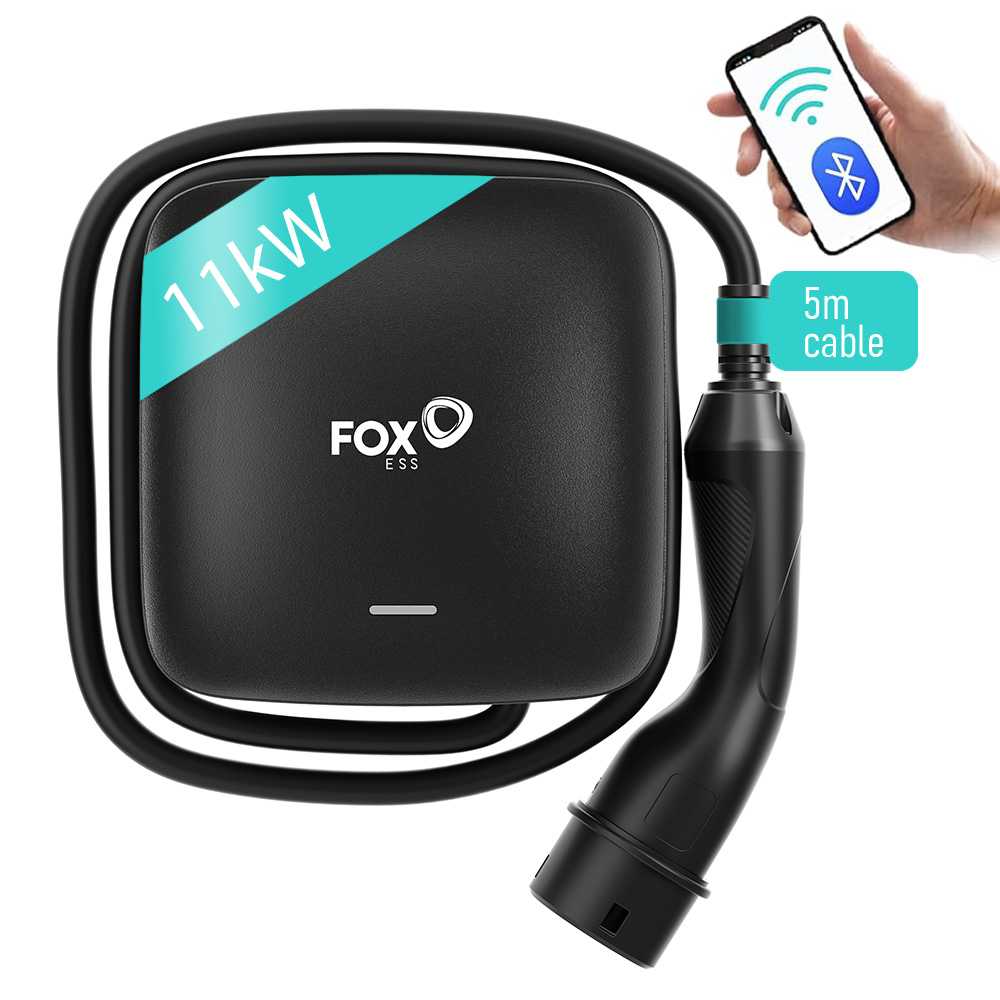

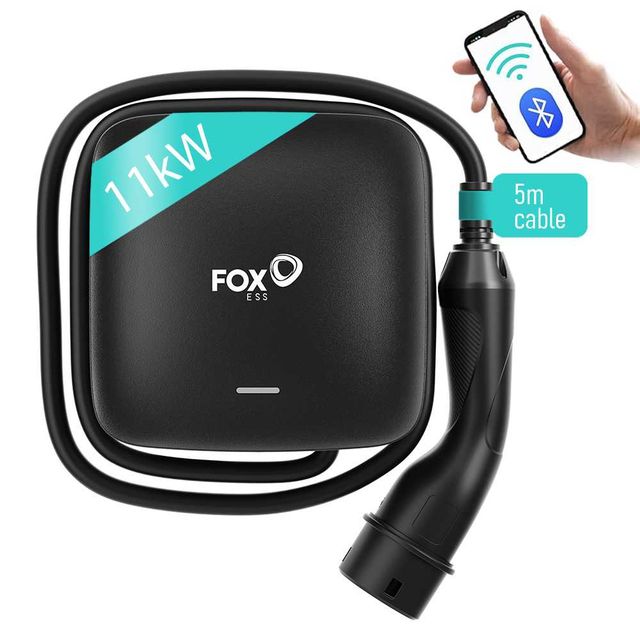

FoxESS L Series Type 2 Wallbox 11 kW, App/WiFi/Bluetooth

The FoxESS L Series 11 kW is the three-phase wallbox in the range, for electric and plug-in hybrid cars. It connects at 400 V with 16 A per phase, which is around 50% more power than the 7.3 kW single-phase version of the same series. It weighs 4.4 kg and mounts on a wall or a pole, indoors or outdoors.

Why this wallbox

• 11 kW three-phase — 400 V and 16 A per phase, so an overnight charge covers more kilometres than a single-phase unit.
• Type A residual current detection plus 6 mA DC leakage detection — both AC and DC fault protection are built into the unit.
• App control over Wi-Fi or Bluetooth — you start and stop charging and follow consumption from your phone.

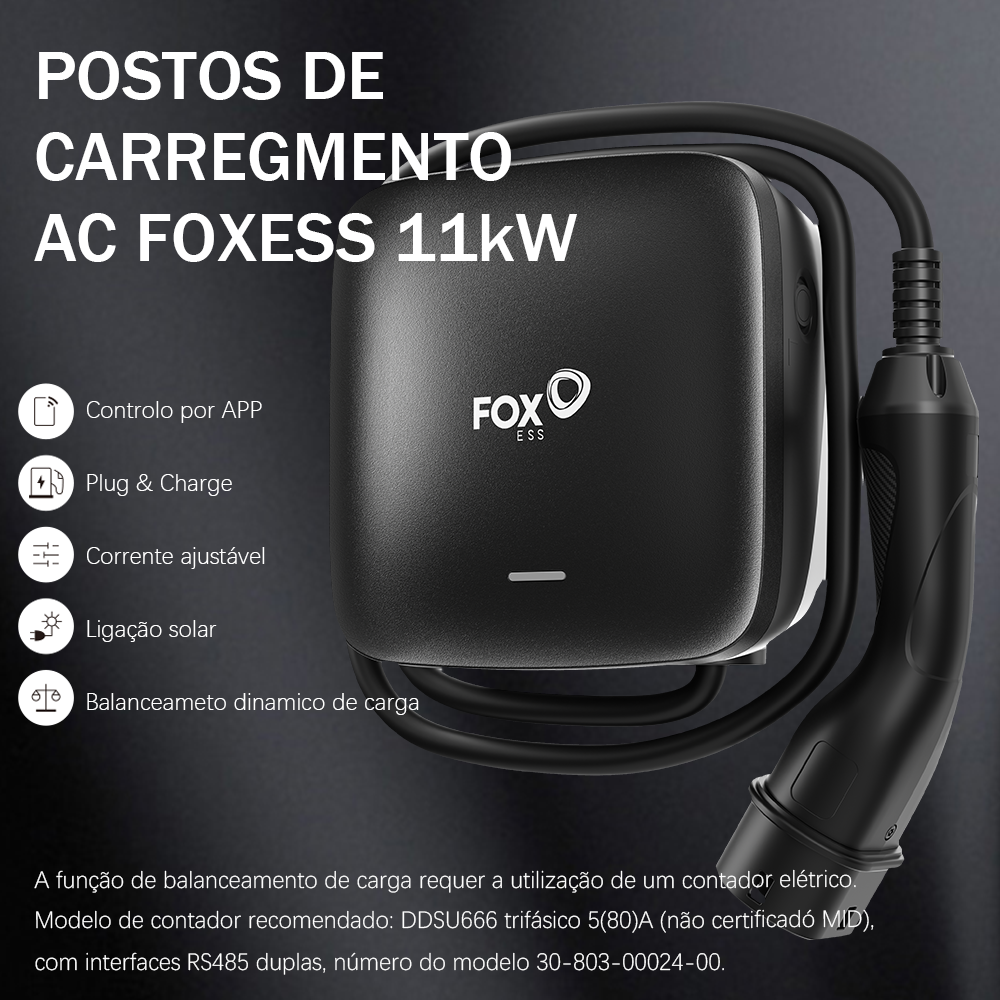

• Dynamic load management — it adjusts power to what the rest of the installation is drawing and prevents electrical overloads.
• Solar ready — it works with a photovoltaic installation, so you can charge on your own production.
• IP55, IK08 and -25 °C to +50 °C — sealed, impact-rated and specified for outdoor mounting in cold and heat.

Specifications

• Maximum power: 16 A / 11 kW
• Supply voltage: 400 V / 16 A
• Phase: three-phase
• Connector: Type 2 (IEC 62196)
• Connectivity: app, Wi-Fi and Bluetooth
• Residual current detection: Type A, with 6 mA DC leakage detection
• Protection rating: IP55 + IK08
• Operating temperature: -25 °C to +50 °C
• Standards and certification: CE, TÜV, UKCA, EN, IEC 61851
• Protections: overvoltage, overcurrent, short circuit, current faults and overheating

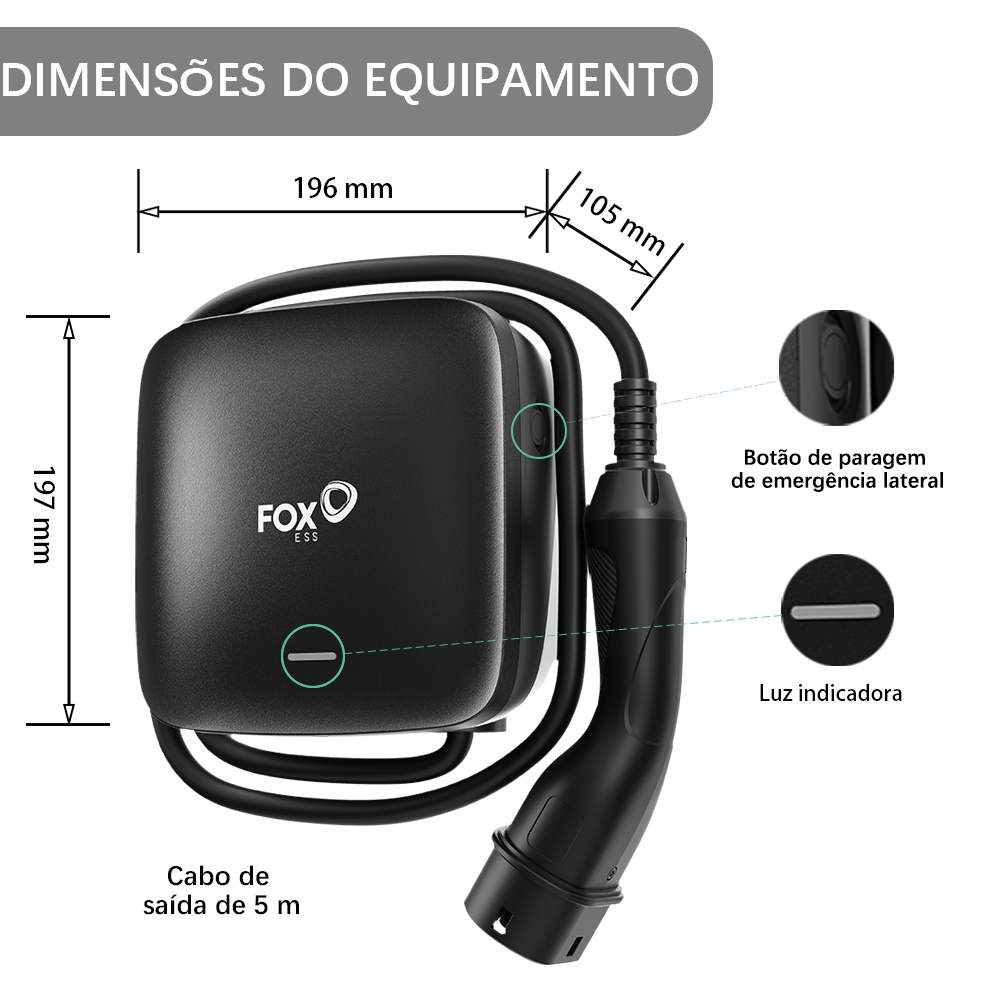

• Dimensions: 197 × 196 × 105 mm
• Weight: 4.4 kg

What's in the box

• 1 FoxESS L Series wallbox 11 kW
• 1 mounting bracket
• 1 user manual
• Fixing accessories

The datasheet and the CE and UKCA certificates are available for download on this product page.

Compatibility

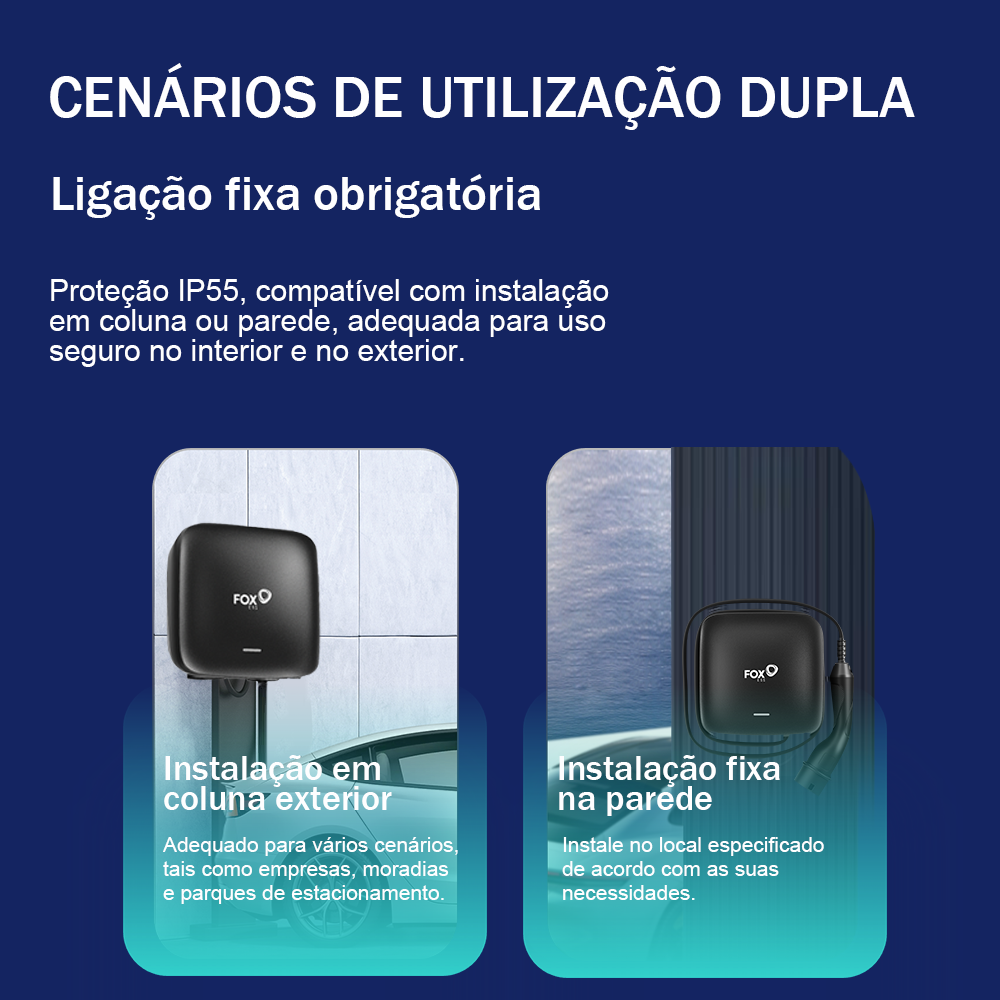

Works with electric and plug-in hybrid vehicles that use a Type 2 connector (IEC 62196). It needs a three-phase 400 V supply with 16 A per phase, and it can be paired with a photovoltaic installation. It mounts on a wall or a pole, indoors or outdoors, and installation is carried out by a qualified electrician.
