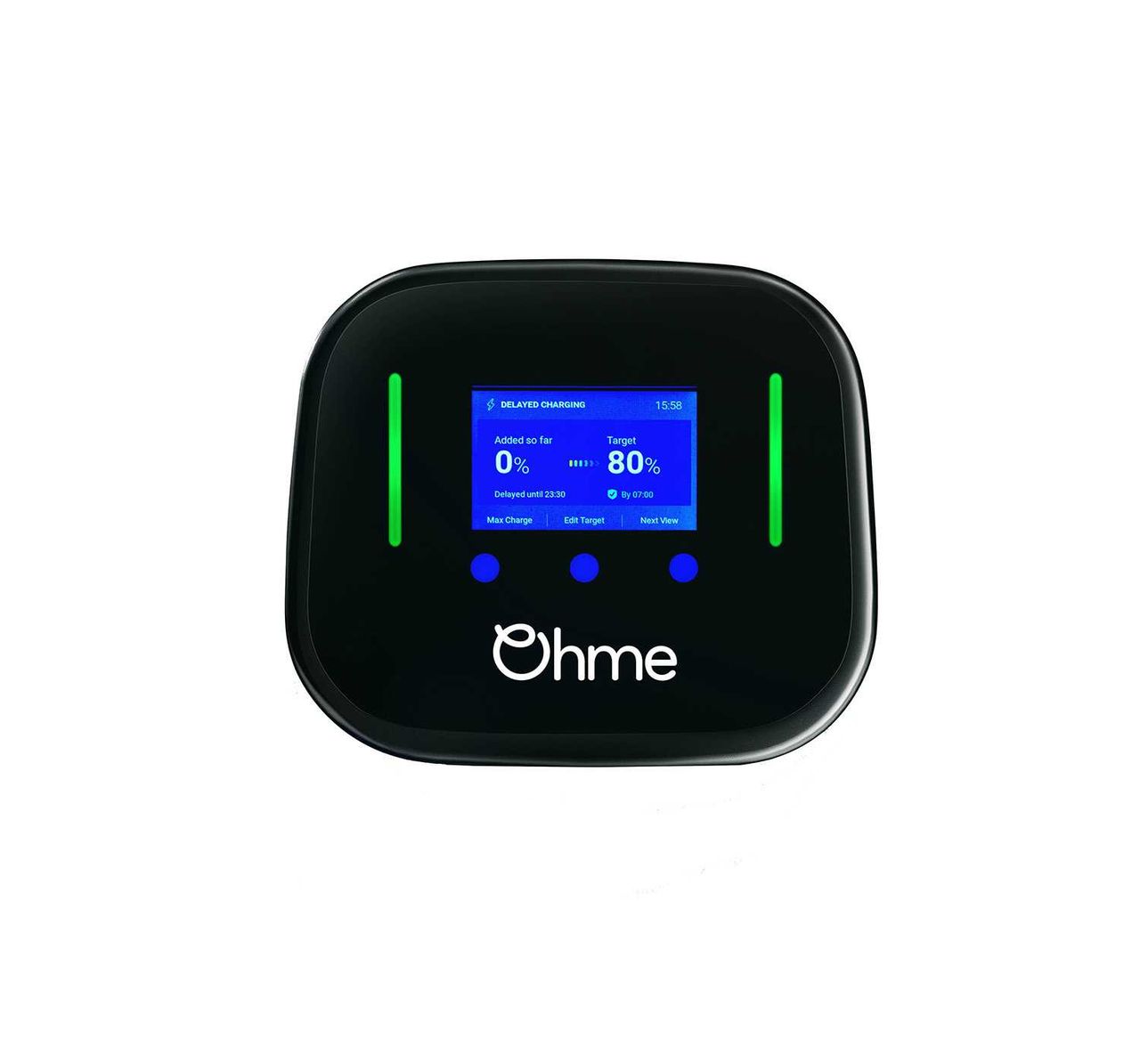

Wallbox Ohme Home Pro – 7.4 kW / 11 kW

The Ohme Home Pro is a wallbox with an integrated Type 2 cable, available in 7.4 kW and 11 kW. You pick the version that matches your electrical installation: 7.4 kW on single-phase 230 V, 11 kW on three-phase 400 V. It mounts on a wall or on a pedestal, indoors or outdoors.

Why this wallbox

• Two power levels — 7.4 kW or 11 kW, to match the supply you have at home.
• Cable already included — Type 2, 5 m or 8 m depending on the variant.
• Scheduled sessions — you set charging for the lowest-tariff hours in the Ohme app, or use the buttons on the charger.
• Its own connection — WiFi, Bluetooth and 4G, with a 3G/4G SIM card included and OTA firmware updates.
• Built-in electrical protection — residual current detection at AC 30 mA and DC 6 mA, with the option to add overcurrent protection.
• Ready for outdoors — IP55 against dust and water jets, IK08 against impact.

Specifications

• Maximum power: 7.4 kW or 11 kW
• Supply: 230 V (single-phase) / 400 V (three-phase)
• Dimensions: 200 × 100 × 170 mm
• Weight: 4 kg
• Cable: Type 2, 5 m or 8 m depending on the variant
• Connectivity: WiFi, Bluetooth and 4G, with 3G/4G SIM card
• Residual current detection: AC 30 mA / DC 6 mA
• Protection rating: IP55 / IK08
• Energy management: load balancing across connected equipment

What's in the box

• Ohme Home Pro wallbox
• Integrated Type 2 cable, 5 m or 8 m depending on the variant chosen
• 3G/4G SIM card

Compatibility

It charges electric and plug-in hybrid vehicles with a Type 2 inlet, the European standard. The 7.4 kW version connects to a single-phase 230 V installation and the 11 kW version to a three-phase 400 V one. The power your car receives also depends on its onboard charger. You manage everything in the Ohme app, available for smartphone.
