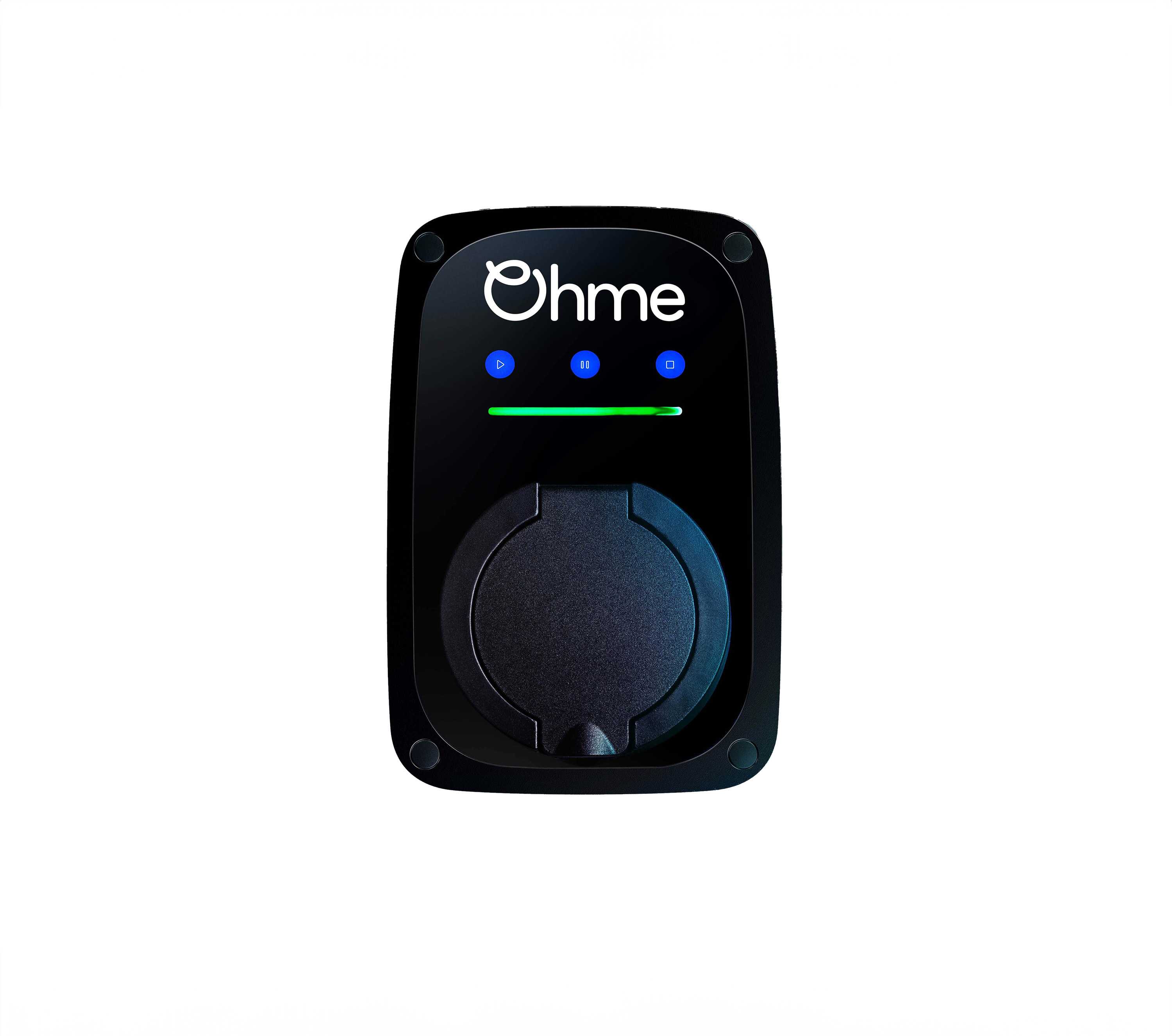

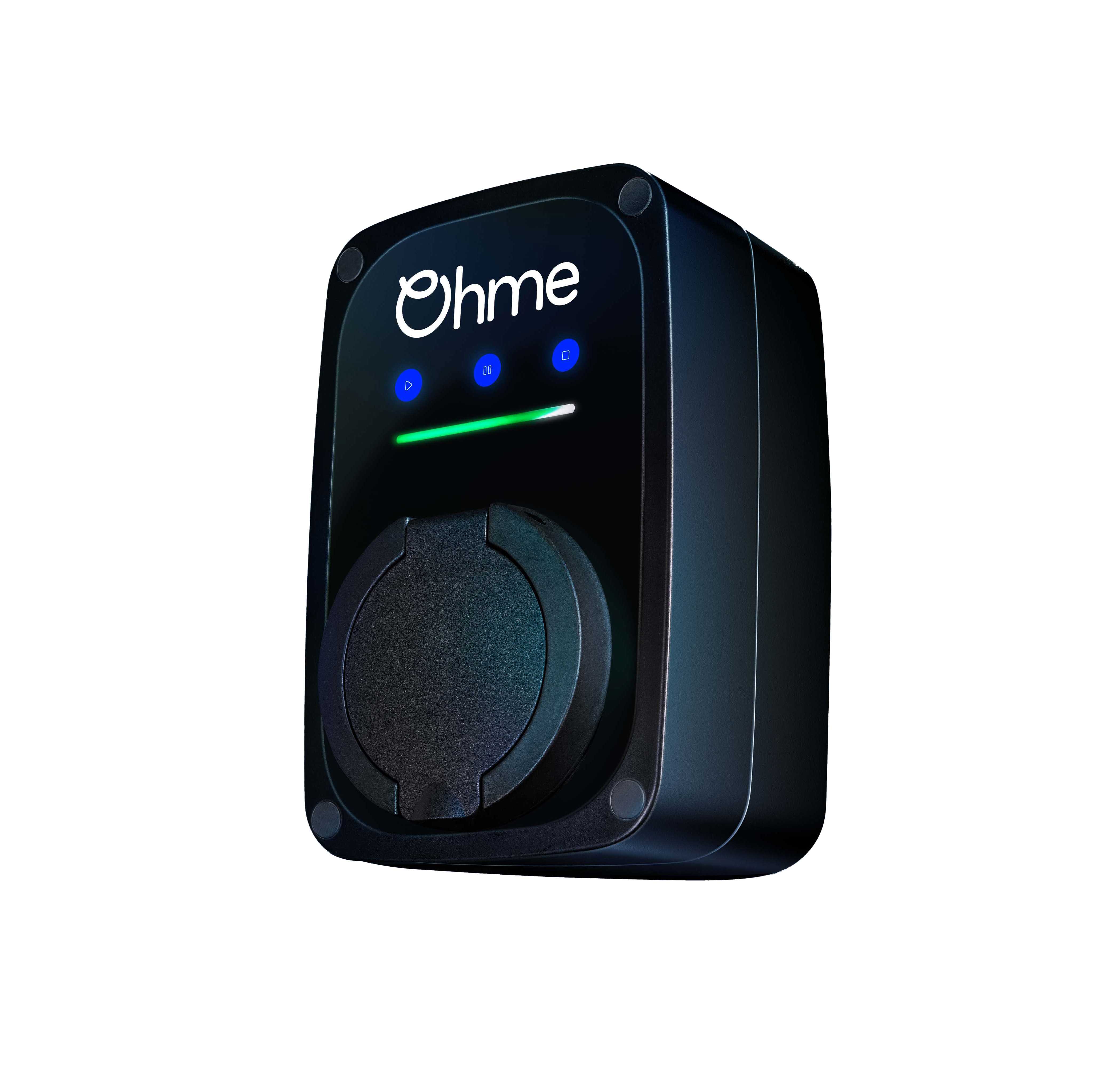

Ohme ePod

The Ohme ePod is a 7.4 kW wallbox for charging your electric car at home. It measures 230 × 140 × 100 mm and weighs 1.48 kg, so it takes up little wall space. You control each session in the Ohme app or with the buttons on the charger itself.

Why this wallbox

• Faster charging — 7.4 kW at 32 A, well above what a domestic socket delivers.
• Little wall space — 230 × 140 × 100 mm and 1.48 kg.
• Scheduled sessions — you set charging for the lowest-tariff hours of your contract.
• Its own connection — WiFi, Bluetooth and 4G, with a 3G/4G multinet SIM card included, so firmware updates arrive without relying on your network.
• Built-in electrical protection — residual current detection at AC 30 mA and DC 6 mA, with the option to add overcurrent protection.
• Indoor or outdoor installation — IP54 against dust and water, IK08 against impact.

Specifications

• Maximum power: 7.4 kW
• Current: 32 A
• Supply: 230 V AC, 50 Hz
• Dimensions: 230 × 140 × 100 mm
• Weight: 1.48 kg
• Connector: Type 2 (IEC 62196)
• Connectivity: WiFi, Bluetooth and 4G, with 3G/4G multinet SIM card
• Residual current detection: AC 30 mA / DC 6 mA
• Protection rating: IP54 / IK08
• Certifications: CE, TÜV
• Energy management: load balancing across connected equipment

Compatibility

It charges electric and plug-in hybrid vehicles with a Type 2 (IEC 62196) inlet. The supply is single-phase at 230 V, and the power your car receives also depends on its onboard charger. The Ohme app is available for smartphone, and the charger mounts on a wall or on a pedestal.
