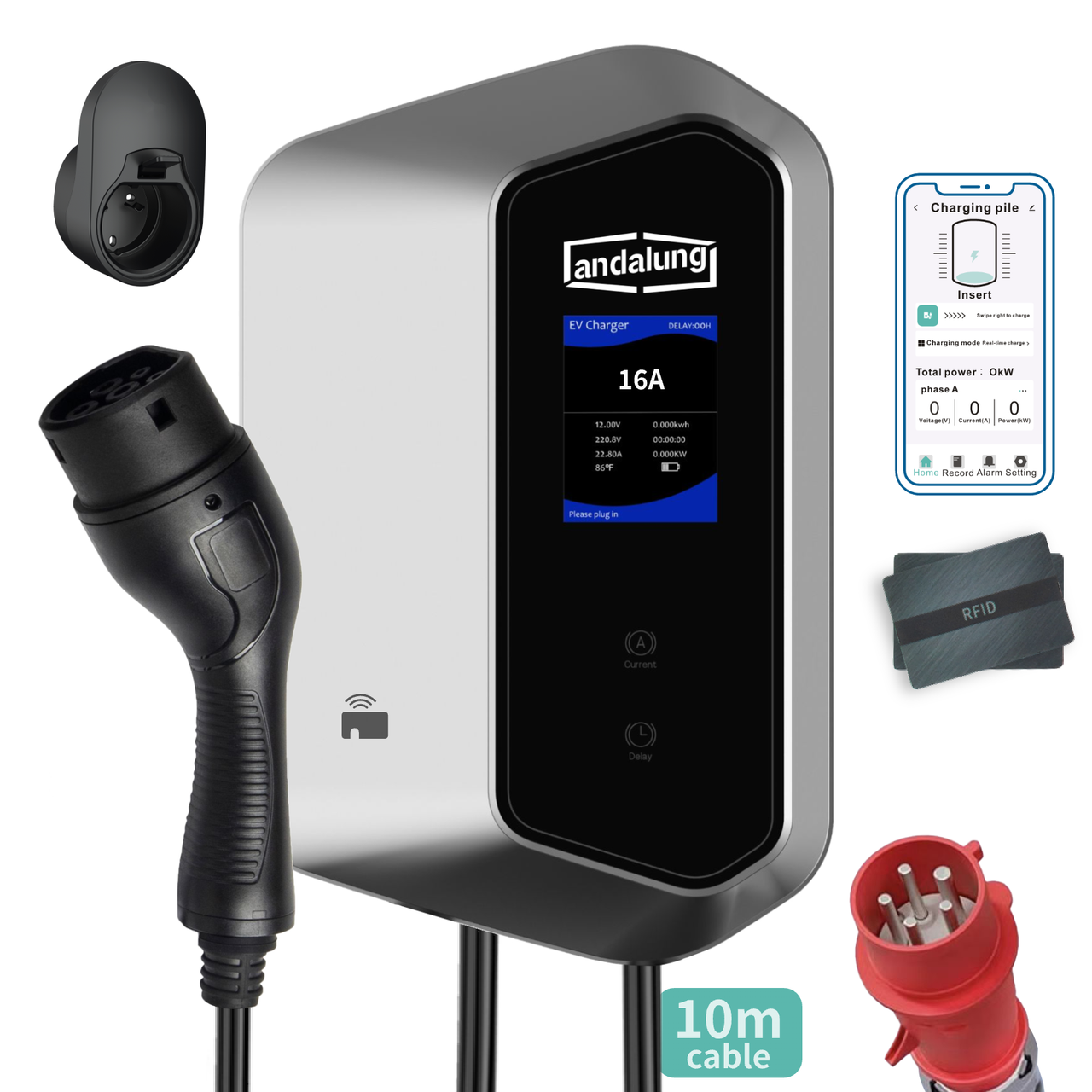

Wallbox Andalung – 7.4 kW / 11 kW – Wi-Fi e RFID

The Andalung wallbox charges your electric car at home, in a shared building or at your business. It comes in 7.4 kW single-phase and 11 kW three-phase, with a 10 m Type 2 cable already included. You manage sessions in the app, over Wi-Fi or Bluetooth, and control who charges through the RFID reader.

Why this wallbox

• Two power levels — 7.4 kW at 32 A single-phase, or 11 kW at 16 A three-phase.
• 10 m cable — you reach the car in garages and bays where the inlet sits far from the wall.
• You set the current — from 6 A up to the maximum of the version you choose.
• App control — Wi-Fi and Bluetooth to follow and command charging remotely.
• You control who charges — built-in RFID reader, with two cards included.
• Electrical protection — residual current detection at 30 mA AC and 6 mA DC, plus protection against overcurrent, overvoltage and overheating.

Specifications

• Maximum power: 32 A / 7.4 kW or 16 A / 11 kW, depending on the version
• Phases: single-phase (7.4 kW) or three-phase (11 kW)
• Supply: 220 V or 400 V, 50/60 Hz, depending on the version
• Adjustable current: from 6 A
• Cable: Type 2, 10 m
• Dimensions: 265 × 170 × 80 mm
• Weight: 6.4 kg
• Connectivity: Wi-Fi, Bluetooth and RFID
• Residual current detection: 30 mA AC + 6 mA DC
• Protection rating: IP54

What's in the box

• 1x Andalung wallbox, 7.4 kW or 11 kW depending on the version chosen
• 1x 10 m charging cable
• 1x mounting kit and holder
• 2x RFID cards
• 1x user manual

Compatibility

It charges electric and plug-in hybrid vehicles with a Type 2 inlet. The 7.4 kW version connects to a single-phase 220 V installation and the 11 kW version to a three-phase 400 V one, so choose according to your electrical supply. The power your car receives also depends on its onboard charger. With an IP54 rating, you can install it indoors or outdoors under cover.
